wiring rabbit hole

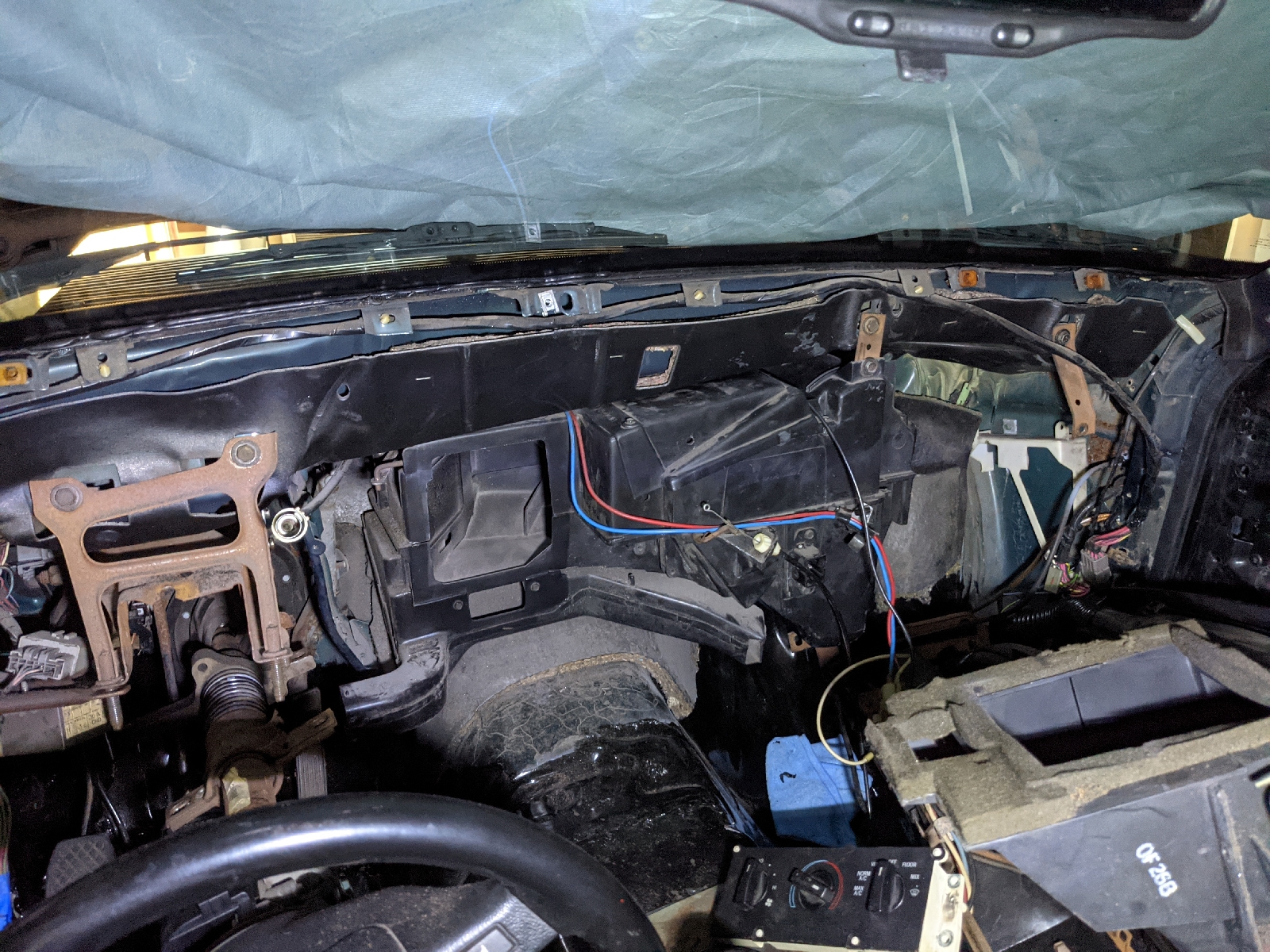

Blue pill all the way. I dropped the steering wheel and removed the dash again. This time I unplugged all the steering wheel connections. I passed the headlight wiring between the mirror defrost and the vent tubes. I cut the tach lighting and key-on as well as the signal wire because there was no disconnect. I need to disconnect the brake switch, clutch, cruise control brain and then pull the wheel liner. Also in the works I plan on pulling back the msd wiring and reshielding the tfi lead. Then I can add the momentary fan kill button and the volt meter.
ill strip back the harness and make the final decision on repair or replace.
