volt meter and fan delay button install

Finally finished the wiring for the fan controller delay button and the volt meter. I needed to check the amperage draw on the fan controller to make sure the thin wires on the button weren't over loaded so I hooked the dvm and set it to dc amperage.
When the fan controller is activated the draw is .39 amps so the switch is fine.
i am not sure if I will keep the back light because it outshines everything.

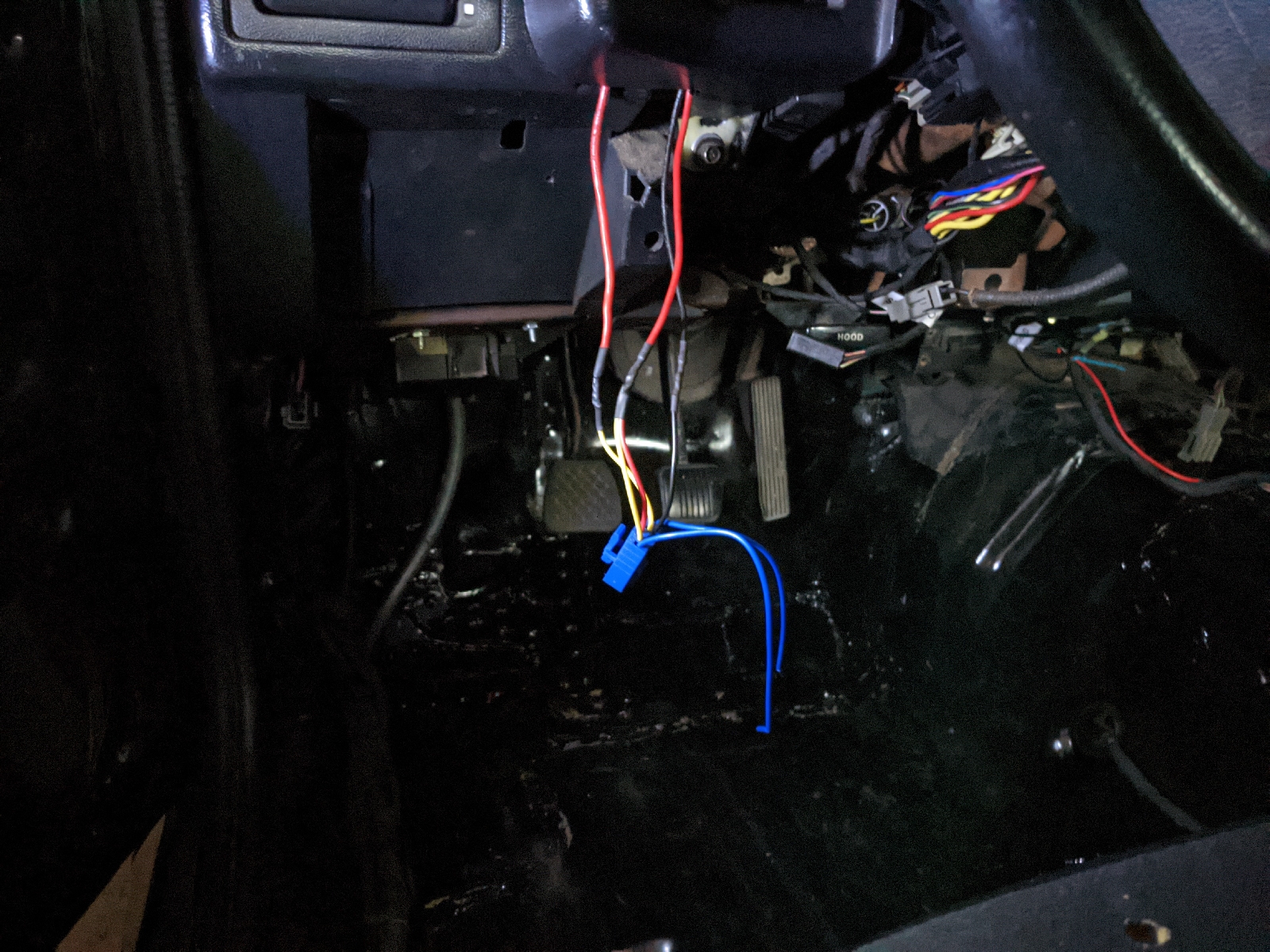

I also installed the volt meter in the gauge pod. I wired it to the ignition switch which goes straight to the fuse box. I de-pinned the black and green wire from ignition switch, I wrapped a 16 gauge wire around the back of the pin and soldered it.
