Solving the speedo cable and finishing off the battery relocation

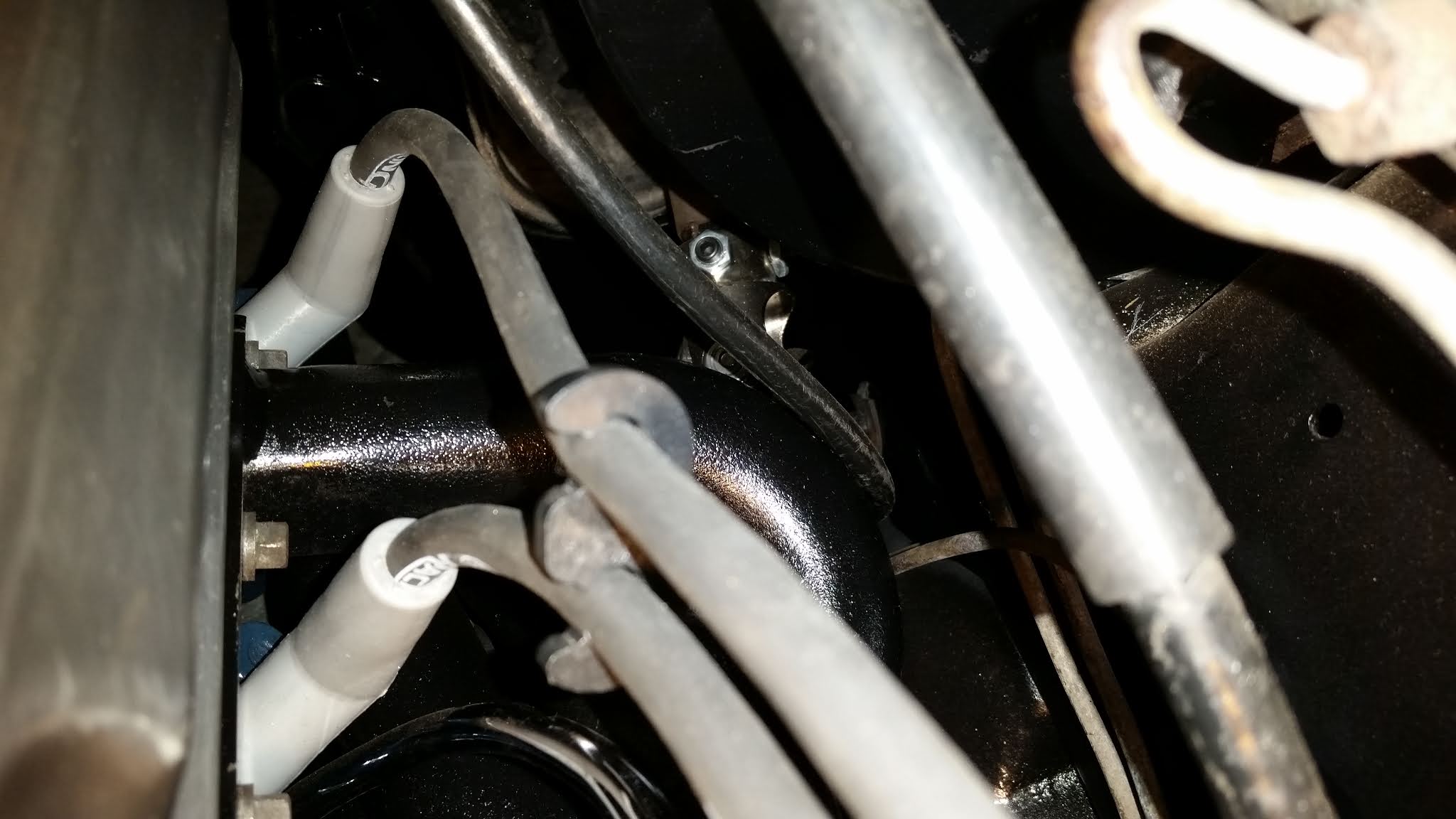

After the first start I noticed the speedo cable touching the headers.
The solution although a bit hackish, is a section of hose placed over the front brake line coming off the stock proportioning valve, a hose clamp and a bit of galvanized mechanics wire looped around the speedo cable holding it a half inch away from the header.
The battery relocation is complete. Now that I have the final wire length i drilled 2 holes in the sail panel and will come up with a bit of trim to cover the wires on top of the hatch carpet.

A good threaded hold down bracket holds the battery firmly inside a marine box
The box is trimmed to sit around the hold down. The 140 amp breaker is missing the cover and will get a rubber battery terminal cover.
